SK
Supreme
Imo no.: 9157739
SP shipbase no.: K116864 Last
update: 16/7/2002
Type: LNG
Flag:
PAN Call sign: 3FOB9 Port
of registry: Panama
COMPANY:
|
Name |
Owner type |
Nation |
|
SK Shipping Co, Ltd |
Manager |
Korea |
VESSEL DESCRIPTION:
BUILT:
Year: 1999
Month: 12 Day: 30
Yard: Samsung HI Yard no.: 1207
HULL MATERIAL: Steel
HULL TYPE(S):
|
Type |
Description |
Year |
Company |
|
Bulbous bow |
|
0 |
|
|
Double
hull |
|
0 |
|
CLASS:
|
Class |
Description |
|
ABS |
+A1(E), Liquefied Gas Carrier,Ship type 2G,(membrane
tank, maxpressure 25kPaG, min temp -163°C, |
|
KR |
|
TONNAGES:
|
GT: 92866
|
NT.: 27859 |
MDWT.: 75320
|
DIMENSIONS:
|
Main particulars |
Meters |
Feet |
|
Length o.a. |
278,8 |
914,7 |
|
Length p.p. |
266 |
|
|
Breadth(mld) |
42,6 |
139,76 |
|
Depth(mld) |
26 |
85,3 |
|
Draught |
12 |
39,37 |
CAPACITIES:
Tank: 4
|
Type |
Description |
Measure |
|
Cargo capacity |
|
|
|
Liq |
138200
M3 4883392 Cuft |
|
|
Vessel capacity |
|
|
|
Fuel Oil |
6600
m3 |
|
|
Diesel Oil |
450 m3 |
|
|
Ballast |
54200 m3 |
|
|
Type |
Description |
|
Coating |
GTT Mk III cargo containment system |
|
Temp |
-163°C |
ENGINES:
|
Totals |
Bhp.: 38948 |
Kw.: 29055 |
|
Type |
Make |
No |
BHP |
KW |
RPM |
Year |
Builder |
|
Main |
Kawasaki UA-400 turbine |
1 |
38948 |
29055 |
0 |
0 |
|
|
Aux |
MAN B&W 8L32/40 |
1 |
4625 |
3450 |
720 |
0 |
|
SPEED/CONSUMPTION:
20.5 kn
201.9 t/d
EQUIPMENT:
|
Group |
Type |
Description |
Make |
Built |
Inst. |
Ren. |
|
Auxiliary equipment |
Boiler |
2x
68000 kg/hr |
KHI |
|
|
|
|
|
Generator |
2x 3450 kW steam turbine |
|
|
|
|
|
Cargo Handling |
Crane |
2x 10 ts 12 m/min, hosehandling |
|
|
|
|
|
|
Inert
gas plant |
2x 90 m3/hr nitrogen generators |
|
|
|
|
|
|
|
14000 m3/hr |
Moss |
|
|
|
|
|
Pump |
8x 1700 m3/hr |
Elbara |
|
|
|
|
Miscellaneous |
Vapour return |
returened to shore, 2x 32000 m3/hr |
Atlas Copco |
|
|
|
|
Navigation |
Bridge Control |
|
Norcontrol Databridge 2000 |
|
|
|
|
Propulsion |
Propeller |
fixed diam 8.2 m |
Hyundai |
|
|
|
|
|
Thruster |
forw 2000 kW |
|
|
|
|
|
Safety |
Fire detection |
|
Saraco Thorn T890 |
|
|
|

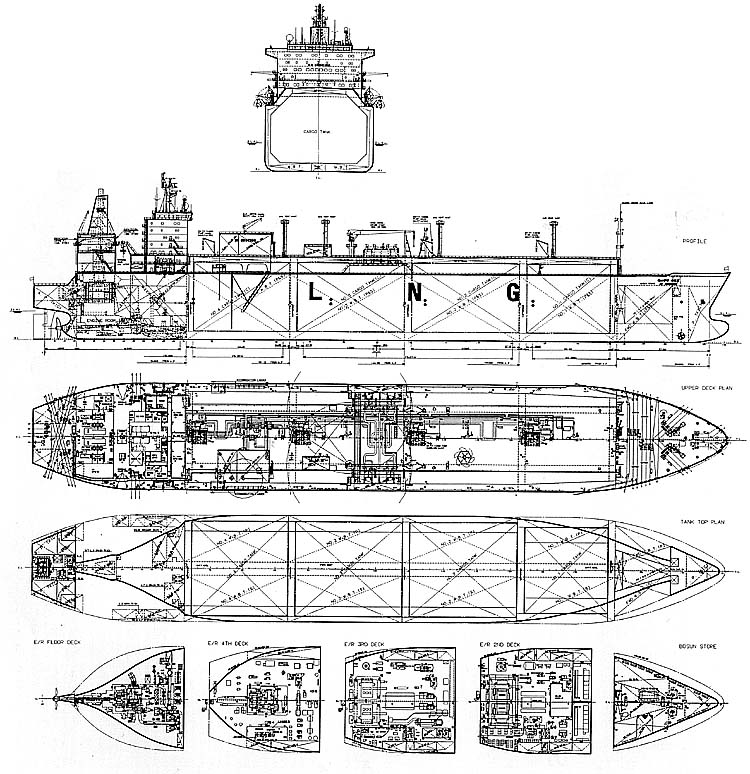

PROFILE:
