Neptune
Aegli
Imo no.: 9240964
SP shipbase no.: K125714 Last
update: 10/7/2003
Type:
RORO/Vehicle carrier
Flag:
MAL Call sign: 9HEX7 Port
of registry: Valletta
COMPANY:
|
Name |
Owner type |
Nation |
|
Neptune Shipping Agencies Ltd. |
Managing owner |
Greece |
VESSEL DESCRIPTION:
BUILT:
Year: 2002
Yard: Barreras S.A., Hijos de J. Yard
no.: 1594
ALL INFO AS DESIGN
HULL MATERIAL: Steel
HULL TYPE(S):
|
Type |
Description |
Year |
Company |
|
Bulbous bow |
|
0 |
|
CLASS:
|
Class |
Description |
|
DNV |
+1A1, General Cargo Carrier,Ro-Ro, Car carrier,
MOCK, E0,Ice 1C, Clean |
TONNAGES:
|
GT: 15850
|
NT.: 0 |
MDWT.: 4700
|
DIMENSIONS:
|
Main particulars |
Meters |
Feet |
|
Length o.a. |
157,8 |
517,72 |
|
Length p.p. |
145 |
|
|
Breadth(mld) |
24,4 |
80,05 |
|
Depth(mld) |
14,08 |
46,19 |
|
Draught |
6,5 |
21,33 |
CAPACITIES:
Deck: 5
|
Type |
Description |
Measure |
Description |
|
Cargo capacity |
|
|
|
|
Lanemeter |
1500
|
as RoRo 3 m wide |
|
|
|
|
|
|
|
Cars |
1500 |
|
|
|
|
|
|
|
|
Trailers |
87 |
+ 470 cars |
|
|
|
|
|
|
|
Passengers |
12 |
|
|
|
|
|
|
|
|
Lanemeter |
7100
|
2 m wide, as car carrier |
|
|
Type |
Description |
|
Deck |
2 flex decks for cars |
|
|
Tanktop
Lanem (2m) 500 m |
|
|
Lo cardk 1 Lanem (2m) 500 m, hgt 2.2m |
|
|
Maindk (3) lanem (3/2m) 740/1225 |
|
|
Hoistable main (no4) Lanem (2m) 1125 |
|
|
Upper (no5) Lanem (3/2m) 760/1200 |
|
|
Upper (no6) lanem (2m) 1300 |
|
|
Upper (cardk 7) lanem (2m) 1250, hgt 1.8 m |
|
Endurance |
8000 nm |
ENGINES:
|
Totals |
Bhp.: 20919 |
Kw.: 15600 |
|
Type |
Make |
No |
BHP |
KW |
RPM |
Year |
Builder |
|
Main |
Wärtsilä NSD 8L46B |
2 |
10460 |
7800 |
500 |
0 |
|
|
Aux |
Wärtsilä NSD |
0 |
1368 |
1020 |
1800 |
0 |
|
SPEED/CONSUMPTION:
20 kn
EQUIPMENT:
|
Group |
Type |
Description |
Make |
Built |
Inst. |
Ren. |
|
Auxiliary equipment |
Generator |
2x
1238 kVA |
Leroy
Somer |
|
|
|
|
|
Shaft
generator |
2x
1500 kVA |
Leroy Somer |
|
|
|
|
Cargo Handling |
Ramp |
intern l 48.5 m, 3.2 m wide |
|
|
|
|
|
|
|
stern quarter4 m w, 17 m l |
|
|
|
|
|
|
|
stern7 m wide, 16 m l, max 85 t |
|
|
|
|
|
Communications |
GMDSS |
|
Norcontrol S400 250W |
|
|
|
|
Navigation |
dGPS |
2x |
Leica |
|
|
|
|
Propulsion |
Bow thruster |
2x 1000 kW |
|
|
|
|
|
|
Gear |
2x 3.259:1 |
Reintjes SVA950 H K41 |
|
|
|
|
|
Propeller |
2 cp |
|
|
|
|

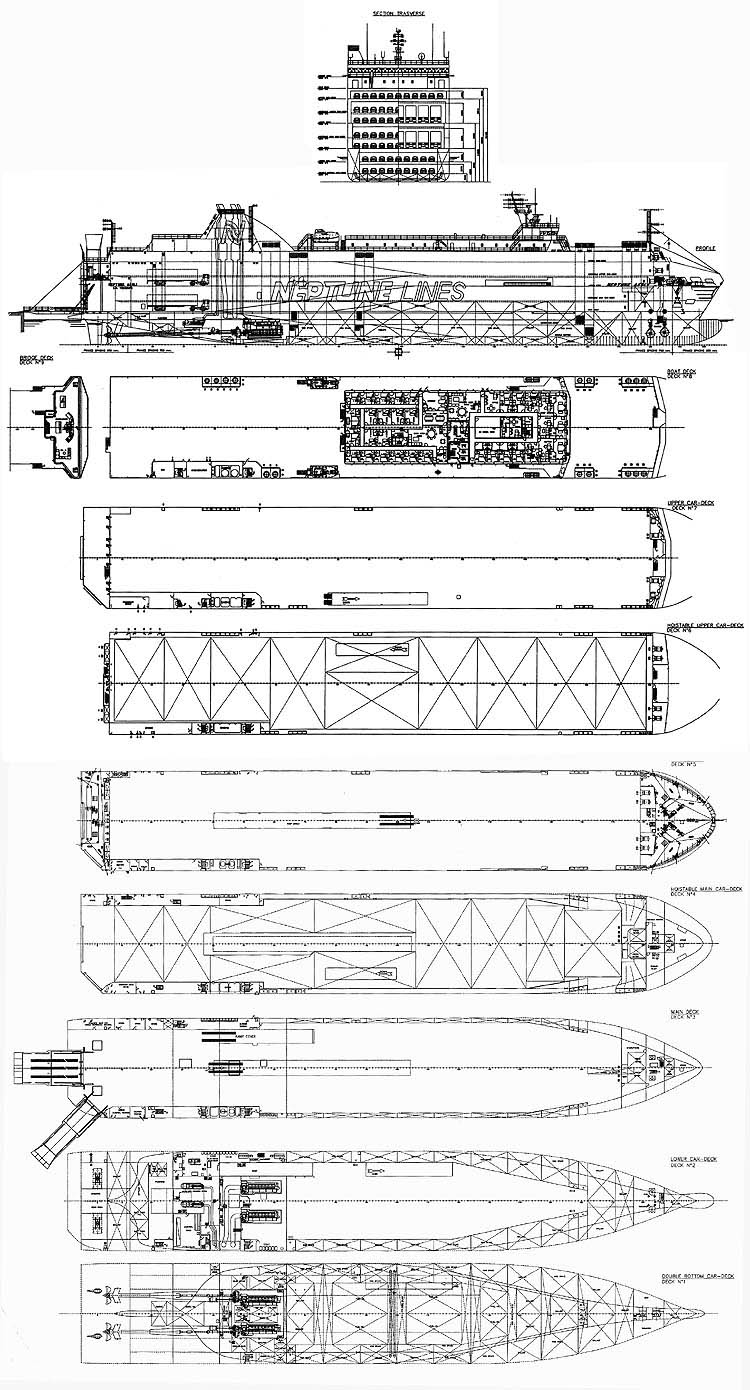

PROFILE:
