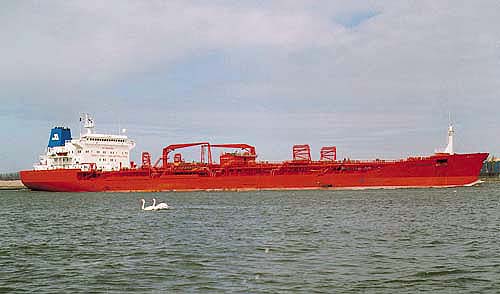

Jo
Sypress
Imo no.: 9150315 SP shipbase no.: 9150315 Last update: 12/11/2002
Type: Chemical tank
©Photo: Waterweg Photos
Flag: NED Call sign: PFSK Port of registry: Rotterdam
COMPANY:
Name Owner type Nation Jo Tankers AS Manager Norway Odfjell Chemical Carriers IV B.V., J O Owner Netherlands Jo Tankers B.V. Operator Netherlands
VESSEL DESCRIPTION:
BUILT:
Year: 1998 Month: 3 Yard: Kvaerner Govan, Glasgow Yard no.: 314
HULL MATERIAL: Steel
HULL TYPE(S):
Type Description Year Company Double hull 0 Bulbous bow 0
CLASS:
Class Description DNV +1A1, Ta for chemicals and oilsESP E0 HL Former LR +100A1, Double Hull Tanker forchemicals, Tanker for Oil, ESP,COW, SBT, LMC, UMS, IGS, IWS
TONNAGES:
GT: 22415
NT.: 11480 MDWT.: 36796
DIMENSIONS:
Main particulars Meters Feet Length o.a. 182,3 598,1 Length p.p. 176,1 Breadth(mld) 32 104,99 Depth(mld) 14 45,93 Draught 10,6 34,78
CAPACITIES:
Tank: 37
Type Description Measure Description Cargo capacity Liq 39250 M3 1386925 Cuft IMO II IMO III Vessel capacity Ballast 16000 m3
Type Description Coating Zinc silicate 7777 m3, WiTA1, 2, 9& 10 Distance Bow to centre manifold: 98.00 m Stern to centre manifold: 84.30 m Pressure S.G. 2.15 t/m3 C1, C5, C7, C9 and C11 S.G. 1.85 t/m3 Ce 2,3,4,6,8 &10 p&s S.G. 1.6 t/m3 WiTA Tank 17 ceTa stainless steel 18007 m3 2x 5 WiTA 20383 m3 6 coated, rest st steel TA1 p/c/s 1630/2255/1639 m3 TA2 ce p/s 432/405 m3 wi p/s x 1426 m3 TA3 ce p/s 308/298 m3 wi p/s x 299 m3 TA4 ce p/s 602/610 m3 wi p/s x 591 m3 TA5 p7c/s 847/1677/847 m3 TA6 p/c/s 1397/1414/1397 m3 TA7 p/c/s 1397/2833/1397 m3 TA8 ce p/s 550/548 m3 wi s/p x 573 m3 TA9 p/c/s 1199/2604/1199 m3 TA10 ce p/s 589/597 m3 wi p/s x 829 m3 Temp +80°C CeTA +60 °C WiTA Tonnage Suez: Grt 22589 Nrt 19051 Panama: Nrt 18 681
ENGINES:
Totals
Bhp.: 14151
Kw.: 10415
Type Make No BHP KW RPM Year Builder Main MAN B&W 6L60MC 1 14151 10415 117 0 Aux Volvo Penta TMD122RC 1 313 230 0 0 Aux MAN B&W Holeby 7L28/32-H 2 0 0 0 0
SPEED/CONSUMPTION:
15.5 kn
EQUIPMENT:
Group Type Description Make Built Inst. Ren. Automation Systems Cargo operation Autronica EA-300/G Auxiliary equipment Boiler 2x 14000 kg/hr at 8 bar Aalborg AQ-9 Cargo Handling Pump 37 up to 600 m3/hr Framo Tank cleaning system Scanjet Miscellaneous Vapour return 8 line, 3.5"/ 5"/ 6" Navigation Autopilot Anschütz Echo sounder Simrad EN 200 GPS Satellite navigator Shipmate RS 5300C Gyro compass Anschütz Log SAL Consilium 860 Loran C Furuno LC-90 MkII Radar Atlas 9600A X Atlas 9600A S Propulsion Bow thruster 882 kW Brunvoll FU-80-LTG-2000 Propeller fixed 4 bl KaMeWa Rudder Schilling Steering gear Ulstein Frydenbø
COMMUNICATION:
Communication type No. Remarks Satcom B 324502510
