HAM
318
Imo no.: 9229556
SP shipbase no.: K125478 Last
update: 13/3/2003
Type:
Dredger/Hopper/Trailing Suction

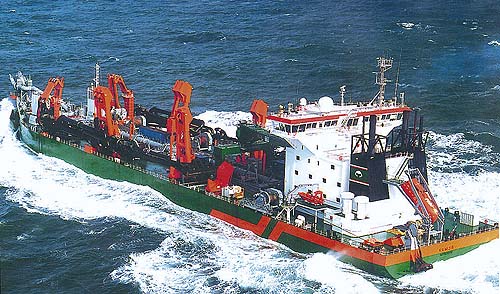

©Photo: Flying Focus
Flag:
NED Call sign: PBDJ Port
of registry:
COMPANY:
|
Name |
Owner type |
Nation |
|
Nederlandsche Overzee Baggermaatschappij B.V |
Owner |
Netherlands |
|
HAM, bagger -en waterb. werken |
Managing owner |
Netherlands |
VESSEL DESCRIPTION:
BUILT:
Year: 2001
Month: 10 Yard: Giessen-de
Noord BV, van der Yard no.: 979
HULL MATERIAL: Steel
CLASS:
|
Class |
Description |
|
BV |
I 3/3 E, Hopper Dredger, Deep Sea,E, for HULL, MACH,
AUT-MS,CNC 1 |
TONNAGES:
|
GT: 0 |
NT.: 0 |
MDWT.: 40560
|
DIMENSIONS:
|
Main particulars |
Meters |
Feet |
|
Length o.a. |
176,15 |
577,92 |
|
Length p.p. |
159 |
|
|
Breadth(mld) |
32 |
104,99 |
|
Depth(mld) |
17,12 |
56,17 |
|
Draught |
13 |
42,65 |
CAPACITIES:
|
Type |
Description |
Measure |
Description |
|
Cargo capacity |
|
|
|
|
Hopper |
23700
M3 837455 Cuft |
|
|
|
Vessel capacity |
|
|
|
|
Ballast |
2500
m3 |
forepeak/aft peak 1500/1000 m3 |
|
|
Type |
Description |
|
Dredging |
depths 55/70/110 m |
ENGINES:
|
Totals |
Bhp.: 38219 |
Kw.: 28500 |
|
Type |
Make |
No |
BHP |
KW |
RPM |
Year |
Builder |
|
Main |
Wärtsilä NSD 12V46C |
2 |
16897 |
12600 |
514 |
0 |
|
|
Aux |
Caterpillar 3306 |
1 |
188 |
140 |
0 |
0 |
|
|
Aux |
Caterpillar 3512 |
1 |
0 |
0 |
0 |
0 |
|
|
Aux |
Wärtsilä NSD 6L26 |
1 |
0 |
0 |
0 |
0 |
|
SPEED/CONSUMPTION:
17.3 kn
EQUIPMENT:
|
Group |
Type |
Description |
Make |
Built |
Inst. |
Ren. |
|
Auxiliary equipment |
Generator |
1x
2300 kVA |
|
|
|
|
|
|
|
1x
1500 kVA harbour, |
|
|
|
|
|
|
Shaft
generator |
2x
13750 kVA |
|
|
|
|
|
Cargo
Handling |
Pipe |
suction pipes diam 1.2 m |
|
|
|
|
|
|
Pump |
2x 2150 kW jet pumps |
|
|
|
|
|
|
|
2x 5500 kW shore discharge pump |
|
|
|
|
|
|
|
2x 2500 kW submerged dredge pumps |
|
|
|
|
|
|
|
2x 2750 kW inside reding pumps |
|
|
|
|
|
Navigation |
Dynamic positioning |
|
Kongsberg Simrad SDP-11 |
|
|
|
|
Propulsion |
Bow thruster |
2x 1100 kW |
|
|
|
|
|
|
Gear |
2 |
|
|
|
|
|
|
Nozzle |
2x inside diam 5.45 m, lgt 2.7 m |
Optima
|
|
|
|
|
|
Propeller |
2
cp diam 5.4 m |
|
|
|
|
|
|
Rudder |
2x
|
Becker
|
|
|
|

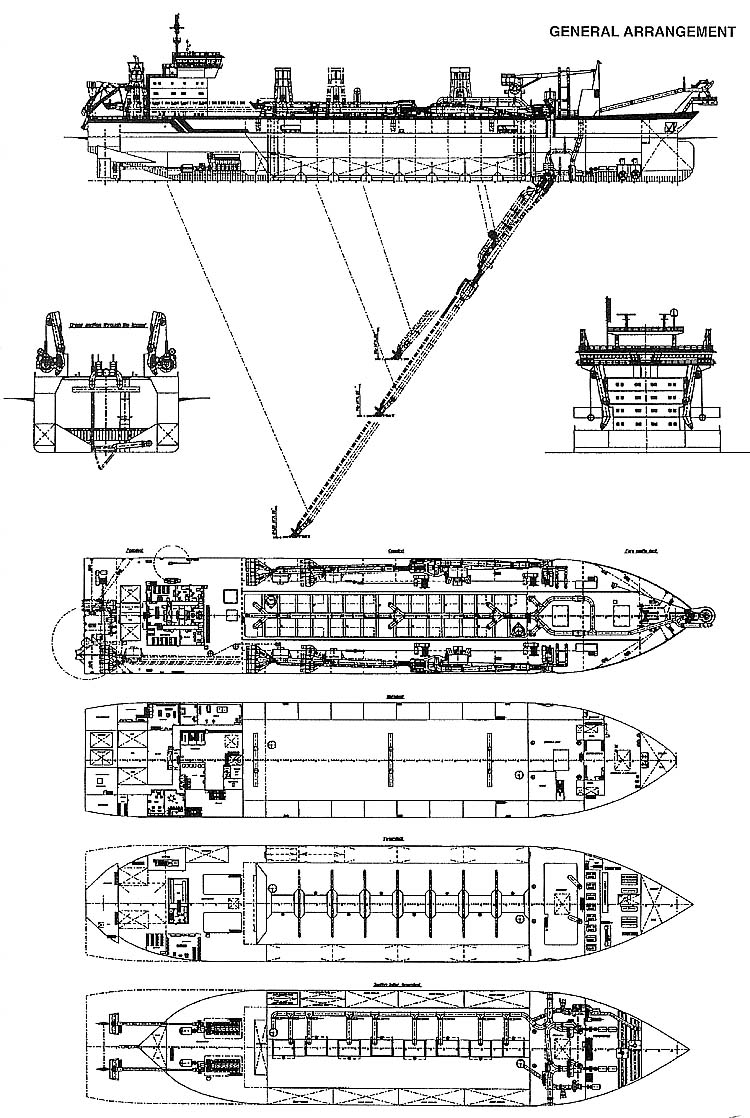

PROFILE:
