SP ShipBase           Fairplay 22            SP ShipBase

Imo no.: 9148764     SP shipbase no.: 9148764   Last update: 11/4/2002

Type: Fire fighting/Tug

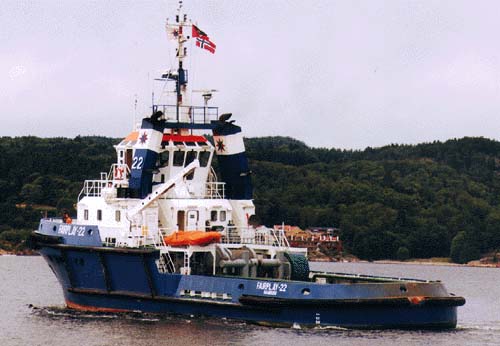

©Photo: B A Krohn Johansen

Flag:     ANT    Call sign:   V2FG    Port of registry:    Hamburg

COMPANY:

Name Owner type Nation
Fairplay Schleppdampfschiffahrtsreederei Richard Borchard GmbH Managing owner Germany

VESSEL DESCRIPTION:

BUILT:

Year: 1998    Yard:    Constr. Nav. Santodomingo   Yard no.:   613

HULL MATERIAL: Steel

CLASS:

Class Description
GL +100A5, E1 M Tug+MC E1 Aut

TONNAGES:

GT:  492

NT.:  0

MDWT.:  288

DIMENSIONS:

Main particulars Meters Feet
Length o.a. 34,75 114,01
Length p.p. 32
Breadth(mld) 10,8 35,43
Depth(mld) 5 16,4
Draught 4,4 14,44

CAPACITIES:

Type Description Measure Description
 Cargo capacity Bpull Max/Cont/Stern  55/0/50 t
   Foam  16 m3
 Vessel capacity Diesel Oil  237 m3
   Ballast  108 m3
   Water  99 m3
   Lub Oil  12 m3

ENGINES:

Totals

Bhp.: 4473

Kw.: 3292

Type Make No BHP KW RPM Year  Builder
Main Deutz MWM SBV8M628 2 2236 1646 1000 1996
Aux MAN B&W D2866 2 156 115 1500 0
Aux Deutz MWM TBD616V8 1 516 380 1500 0

SPEED/CONSUMPTION:

12.5 kn

EQUIPMENT:

Group Type Description Make Built Inst. Ren.
 Auxiliary equipment  Generator  2x 130 kVA 380/220 V, 50 Hz
 Cargo Handling  Crane  1x 1 t 3.5 m Palfinger
    Tow hook  55 t SWL Seebeck HH55-CS-BC
    Towing winch  brake force 128 t, first layer
 Navigation  Autopilot   Plath Navigat V/G
    Gyro compass   Plath Navigat XII
    Radar  2 Racal Decca C 251/6
 Propulsion  Propeller  2x rudder propeller, ea 1600 kW Schottel
    Thruster  forw 200 kW, 2.77 t thrust Schottel

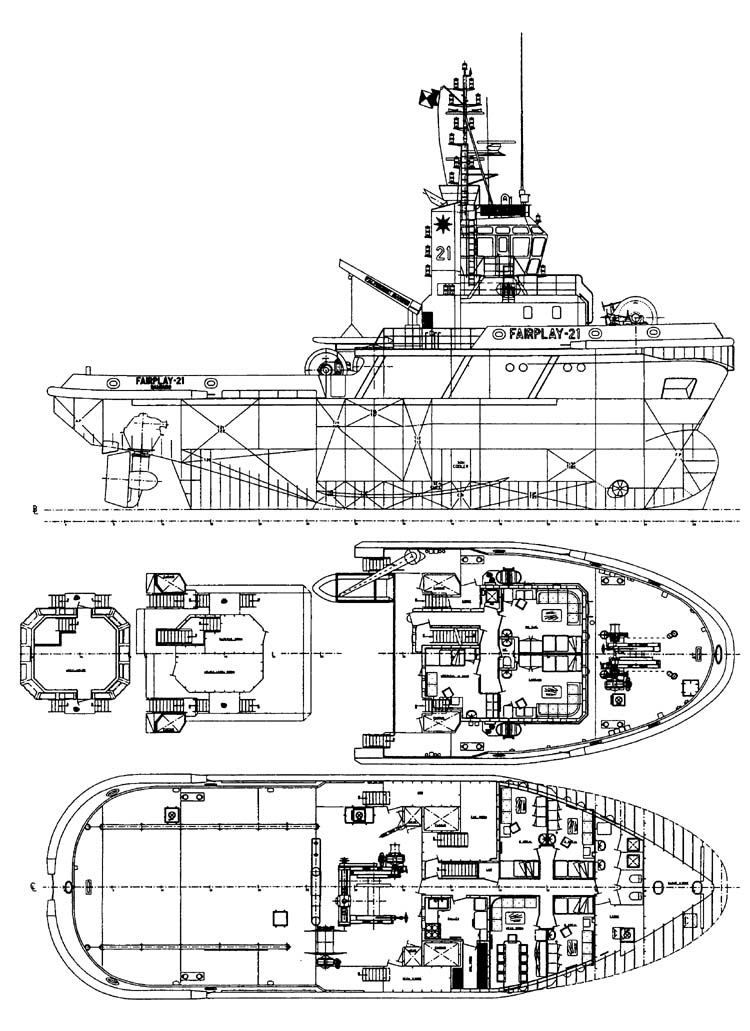

PROFILE:
